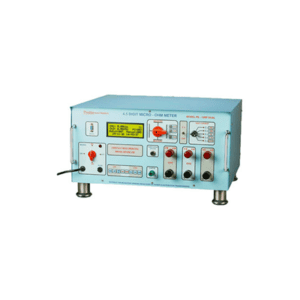

Prestige PE-19RP Dual

Product Specification

Brand	Prestige Electronics
Model	PE-19RP dual
Usage	Industrial
Memory storage	2500 readings
Measurement technique	True 4-wire measurement
Temperature coefficient	50 ppm
No of measurement channels	2
Computer interface	Yes, with PC software
Heatrun automation	Yes
Temperature measurement	Yes
Basic accuracy	0.05%
Resolution	0.1 micro ohms
Display type	4.5 digit display
Test current	25A DC

Product Description

Key Features

• 1μΩ to 2kΩ with basic accuracy of 0.05%
• 41/2 digit LCD display with 0.1 μΩ resolution
• Dual Channel operation
• Multiple test currents – 25A, 10A, 1A, 0.1A, 0.01A
• Heatrun automation with state-of-the-art PC software (PE – WRM 2.0)
• Simultaneous readings of two windings (H.V. & L.V.)
• I% display
• Memory storage ability
• Live switchyard measurements

Major Applications

• Inverter Duty Transformers
• Furnace Transformers
• Power Transformers 500MVA/765kV
• Distribution Transformers
• Generators, Motors



Specifications



TEST CURRENT		MEASUREMENT RANGE	RESOLUTION	ACCURACY
I1	25 A	0-1999.9 μΩ	0.1 μΩ	0.05% of reading +- 0.07% of range
		0-19.999 mΩ	1 μΩ
		0-199.99 mΩ	10 μΩ
		0-499.9 mΩ	100 μΩ
I2	10 A	0-1.9999 mΩ	0.1 μΩ	0.05% of reading +- 0.07% of range
		0-19.999 mΩ	1 μΩ
		0-199.99 mΩ	10 μΩ
		0-1.9999 Ω	100 μΩ
I3	1 A	0-19.999 mΩ	1 μΩ	0.05% of reading +- 0.07% of range
		0-199.99 mΩ	10 μΩ
		0-1.9999 Ω	100 μΩ
		0-19.999 Ω	1 mΩ
I4	0.1 A	0-199.99 mΩ	10 µΩ	0.05% of reading +- 0.07% of range
		0-1.9999 Ω	100 µΩ
		0-19.999 Ω	1 mΩ
		0-199.99 Ω	10 mΩ
I5	0.01 A	0-1.9999 Ω	100 mΩ	0.05% of reading +- 0.07% of range
		0-19.999 Ω	1 mΩ
		0-199.99 Ω	10 mΩ
		0-1.9999 kΩ	100 mΩ
