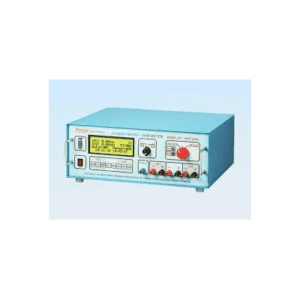

Prestige PE-18RP Dual
| • | 10MVA / 33kV to 100kVA Transformer. |
| • | Dual Channel. |
| • | Heatrun testing software. |
| • | PC interface. |
| Display | : | 4 line backlit LCD display. |
| Range | : | I1 mode (10A) : 19.999mΩ, 199.99mΩ, 1.9999Ω & 19.999Ω. I2 mode (0.1A) : 199.99mΩ, 1.9999Ω, 19.999Ω & 199.99Ω. I3 mode (0.01A) : 1.9999 Ω, 19.999 Ω, 199.99 Ω & 1.9999 kΩ. |
| Test Current | : | About 1A, 0.1A & 0.01A for I1, I2 & I3 mode respectively. |
| Interface | : | Serial RS232 Interface with USB adapter. |
| Accuracy | : | 0.05% of reading ± 0.07% of range. |
| Power | : | 230V.AC ± 10%, 50/60 Hz. |
