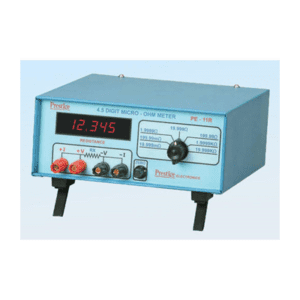

Prestige PE-11R +

Product Details

Brand	Prestige Electronics
Model	PE-11R
Display	4.5 Digit LED Display
Accuracy	0.05% of reading +/- 0.03% of range except 0.05% of reading +/- 0.05% of range for 19.999 Milli-Ohm
Resolution	1 Micro, 10 Micro-Ohm, 100 Micro-Ohm, 1 Milli-Ohm, 10 Milli-Ohm, 100 Milli-Ohm & 10 Ohm respectively
Brand:	Prestige Electronics



Product Specifications

• Warranty 1 year
• Weight 3 Kilograms (kg)
• Frequency (MHz) 50/60 Hertz (HZ)
• Dimension(L*W*H) 205x97x250 Millimeter (mm)
• Operating Temperature 5 to 50 Celsius (oC)
• Measuring Voltage Range 1 to 20K Ohm (ohm)

Trade Information

• Delivery Time Week
• Packaging Details Standard Industrial Grade EPE packing
• Main Export Market(s) Africa, Middle East, Asia
• Main Domestic Market All India

Product Description

Technical Specifications

Display	4.5 Digit LED Display.
Range	19.999 m Ohm, 199.99 m Ohm, 1.9999 Ohm, 19.999 Ohm, 199.99 Ohm, 1.9999 K Ohm, 19.999 K Ohm.
Resolution	1 u Ohm, 10 u Ohm, 100 uOhm, 1 m Ohm, 10 m Ohm, 100 m Ohm & 1 Ohm  respectively.
Accuracy	0.05% of reading +/- 0.03% of range except 0.05% of reading  +/- 0.05% of range for 19.999 m Ohm range.

FEATURES

• 5 Digit Display
• 1 Resolution
• Low P.P.M.
• 4 Wire System
• Fast Response
• Field Proven



APPLICATIONS

• CABLES & WIRES
• CONDUCTORS
• MOTORS
• TRANSFORMERS (CTS & PTS)
• CONTACTORS



GENERAL SPECIFICATIONS

• DISPLAY:- 12.5mm LED – 11R 2 Line LCD – 11RC
• POWER:- 230V 15%, 50/60 Hz
• OPERATING TEMP:- 5 TO 45 C
• TEMP COEFFICIENT:- 50 P.P.M.



ACCESSORIES

• 1m long probe along with crocodile clips
• Instruction manual
• Mains Cord
• Kelvin & Battery Clips (Optional)



ACCURACY:- 0.05% of reading 0.03% of range except 0.05% of reading 0.05% of range for 19.999 m

RANGE	RESOLUTION	TEST CURRENT
0-19.999 m	1	1A
0-199.99 m	10	1A
0-1.9999	100	0.1 A
0-19.999	1 m	10 mA
0-199.99	10 m	1 mA
0-1.9999 k	100 m	0.1 mA
0-19.999 k	1	10 A
0-199.99 k	10	1 A
