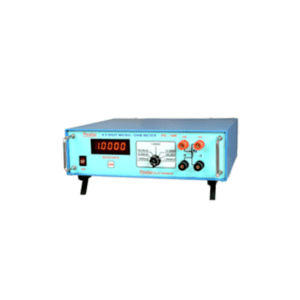

Prestige MOM-10C
Home / Prestige MOM-10C
Prestige MOM-10C
Product Specification
| Model Name/Number | Digital Micro ohm meter |
| Brand | Prestige Electronics |
| Resolution | 0.1 micro ohms |
| Accuracy | 0.05% |
| Usage/Application | Industrial |
| Test current | Upto 10 A DC |
| Measurement technique | True 4-wire/ Kelvin measurement |
| Temperature coefficient | 50 ppm |
| Computer interface | Yes,with PC software |
| Memory storage | 2500 readings |
| Display type | 4.5 digit display |
Product Description
Key Features
- 01µΩ to 2 MΩ measurement range
- 01µΩ resolution
- Upto 10A DC test current
- 05% basic accuracy
- PC interface available with temperature correction & report generation facility
- Low Temperature Co-efficient (low ppm)
Major Applications
- Cables, Wires, Conductors
- Busbars, Switches, Shunts
- Chokes, Motors
- Transformers (CTs & PTs)
- Contactors & other resistive or low inductive materials
Specifications
| Model number | Range | Number of ranges | Basic Accuracy | Resolution | Test Current |
PC interface |
| PE-16R | 0.1µΩ to 1.9999 kΩ |
7 | 0.05% | 0.1µΩ | 10A | No |
| PE-16RC | 0.1µΩ to 19.999 kΩ |
8 | 0.05% | 0.1µΩ | 10A | Yes |
| PE-11R | 1µΩ to 19.999 kΩ |
7 | 0.05% | 1µΩ | 1A | No |
| PE-11RC | 1µΩ to 199.99 kΩ |
8 | 0.05% | 1µΩ | 1A | Yes |
| PE-53C+ | 1µΩ to 29.99kΩ | 8 | 0.1% | 1µΩ | 1A | No |
| PE-15R | 100µΩ to 1.9999 MΩ |
7 | 0.05% | 100µΩ | 1A | No |
| PE-15RC | 10µΩ to 1.9999 MΩ |
8 | 0.05% | 10µΩ | 1A | Yes |
| PE-14R | 10µΩ to 199.99 kΩ |
7 | 0.05% | 10µΩ | 1A | No |
| PE-MOM-10C | 0.1µΩ to 1.9999 kΩ |
7 | 0.1% | 0.1µΩ | 10A | No |
