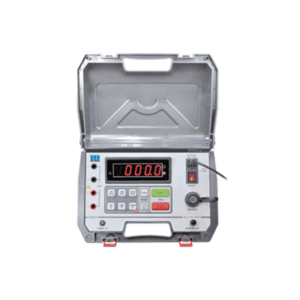

Motwane LR 2045-S

Motwane’s Digital Micro Ohmmeter- LR-2045 is capable of measuring very low resistances (as low as 0.1 μΩ) in micro ohms. This easy to use ohm meter has a 4½ digits LED display. LR-2045 intends to replace the Kelvin bridge and old technology micro ohmmeters to increase productivity, thus saving time. It works on the proven principle of the four wire measurements. The resistance measurement range of LR-2045 is from 2mΩ to 2kΩ with a minimum resolution of 0.1μΩ. The maximum DC current injection is 1A. The pulse mode operation is an additional feature along with the PC interface. The LR-2045 can be used for measuring the resistance of cables, PCB, Relay, LT bus bars, low capacity motors, welded joints, etc.



Technical Specification

Range	Resolution	Max Current	Accuracy ±(%rdg + Digits)
2 mΩ	0.1 μΩ	1 A	±(0.05 ±5)
20 mΩ	1 μΩ	1 A	±(0.05 ±5)
200 mΩ	10 μΩ	100 mA	±(0.05 ±5)
2000 mΩ	100 μΩ	10 mA	±(0.05 ±5)
20 Ω	1 mΩ	10 mA	±(0.05 ±5)
200 Ω	10 mΩ	1 mA	±(0.05 ±5)
2000 Ω	100 mΩ	0.1 mA	±(0.05 ±5)

Note: Temperature:25◦ C ± 3◦ C at 55%±10%RH.

Temperature Coefficient :100ppm/ ◦C.

General Specification

• Warm up time stated accuracy: 5 mins max
• Over range: Blinking zero display.
• Display: 4 ½ digit display.

Power Supply:

• 230 VAC ± 10%, 50Hz, single-phase supply.

Physical Specifications:

• Dimensions (D X W X H): 305 mm X 210 mm X 132 mm
• Net Weight : 3.2kg (Approx)

Standard Accessories

• Test leads with GP kelvin clip
• RS 232
• Mains power cord
• Instruction manual

Optional Accessories

• 10 meters long test leads with heavy duty crocodile clip
• 10 meters long test leads with ‘C’ clamp.
• Test lead with heavy duty bond testing probe
