Process Meter
Owing to the affluent knowledge, we are capable to provide Process Meter. Moreover, the presented series of products is properly checked on varied industry standards to make sure the longer life. We are involved in delivering a wide series of Process Meter. Our presented range is available in diverse specifications that meet on client’s demand. We are one of reputed Process Meter Supplier.
Ground Resistance Tester Integrated with Advanced Digital Process Calibrator & Multimeter Features
- Digital Process Calibrator cum Multimeter
- Display: Backlit LCD, 4 digit display for measurement, 5 digit display for output
- Confirms to IEC61010-1 (CATIV 600V, CATIII 1000V, Pollution Level II
- Overload Protection
- Surge Protection
- Developed, designed and produced according to ISO 9001
Categories

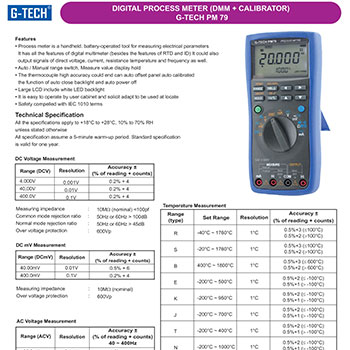

MEASUREMENTS:
- DC Voltage: 60mV/600/6V/60/600/1000V
- Accuracy: ±0.2%+4
- AC Voltage: 6V/60/600V
- Accuracy: ±0.2%+4
- VFC: 600V
- Resistance: 600Ω/6kΩ/60/600/6MΩ/60MΩ
- Accuracy: ±0.2%+4
- DC Current: 60mA/600mA
- Accuracy: ±0.2%+4
- AC Current: 60mA/600mA
- Accuracy: ±0.2%+4
- Frequency: 10Hz/100/1000/10kHz
- Accuracy: 0.01Hz
- Duty Cycle
- Diode Test
- R Type Thermocouple Temperature: 0-1760°C
- S Type Thermocouple Temperature: 0-1760°C
- B Type Thermocouple Temperature: 600 – 1800°C
- K Type Thermocouple Temperature: -200 – 1350°C
- E Type Thermocouple Temperature: -200 – 700°C
- J Type Thermocouple Temperature: -200 – 950°C
- T Type Thermocouple Temperature: -200 – 400°C
- N Type Thermocouple Temperature: -200 – 1300°C
- Accuracy: 1°C
- Thermal Resistance Cu50: -50 – 150°C
- Thermal Resistance PT100: -200 – 850°C
- Thermal Resistance PT1000: -200 – 800°C
Product Description

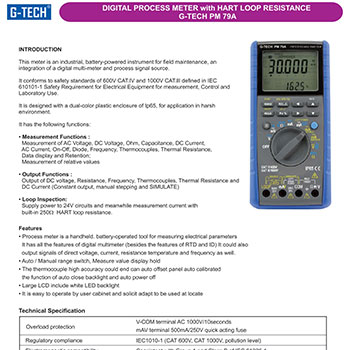

An industrial tool that combines Process Meter and process signal source for on-spot maintenance. Double color plastic injection shell to meet IP65 dust-proof and waterproof grade, and can be used in harsh environment.
OUTPUTS:
- DC Voltage: 100mV/1000/10V
- Accuracy: ±0.2%+4
- DC Current: 30mA
- Accuracy: ±0.2%+4
- Simulated Transmitter: -30mA
- LOOP Power: 24V
- Resistance: 400Ω
- Frequency: 100Hz/kHz/10kHz
- Accuracy: ±0.2%+2
- R Type Thermocouple Temperature: 0 – 1767°C
- S Type Thermocouple Temperature: 0 – 1767°C
- B Type Thermocouple Temperature: 600 – 1820°C
- K Type Thermocouple Temperature: -200 – 1372°C
- E Type Thermocouple Temperature: -200 – 1000°C
- J Type Thermocouple Temperature: -200 – 1200°C
- T Type Thermocouple Temperature: -200 – 400°C
- N Type Thermocouple Temperature: -200 – 1300°C
- Thermal Resistance Cu50: -50 – 150°C
- Thermal Resistance PT100: -200 – 850°C
- Thermal Resistance PT1000: -50 – 150°C
Comprehensive Guide to Process Meter Functions: Measurement, Output, and Loop Inspection
- Measurement functions: AC Voltage, DC Voltage, Resistance, Capacitance, DC Current, AC Current, Diode Test, Frequency, Thermocouple Temperature and Thermal Resistance
- Output functions: DC Voltage, Resistance, Frequency, Thermocouple Temperature, Thermal Resistance and DC Current (constant output, manual stepping and SIMULATE).
- Loop inspection: supply power to 24V circuits and meanwhile measure current.
- Built-in VFC Low Pass Filter can accurately measure distorted voltage and variable frequency voltage.
- Data display and retention.
- Measurement of relative values.
