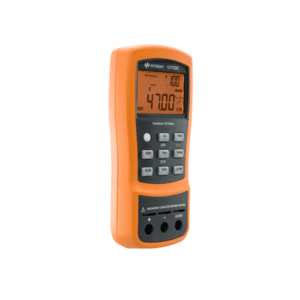

Keysight U 1733C

Product Overview

With the U1733C you can perform quick, basic LCR measurements at your convenience. Now you can measure at frequencies as high as 100 kHz, a capability that is typically found only in benchtop meters. With the one-touch automatic identification function button displays component type and more detailed component analysis such as Z, ESR, and DCR, you can get measurements done faster. The battery lasts up to 16 hours, ideal for testing on the go.

• 20,000 counts resolution
• 2% accuracy
• Wide LCR ranges with 5 selectable test frequencies (100Hz, 120Hz and 1kHz, 10kHz and 100kHz)
• Detailed component analysis with DCR, ESR, Z, D and Q functions
• Auto identification(Ai) which automatically determines and displays component type and measurements
• Detailed component analysis with ESR, Z, D, Q, Ө functions
• IR-to-USB connectivity for data logging to PC

Applications

Test & Measurement, Maintenance & Repair

Contents

Meter, quick start guide, certificate of calibration, alligator clip leads and 9V battery
