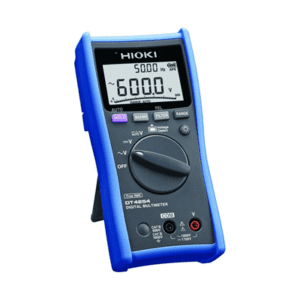

Hioki DT4254

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year Regarding DMM Accuracy: Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the brochure for detailed accuracy information.

DC Voltage range	600.0 mV to 1700 V (*1) 5 ranges, Basic accuracy: ±0.3 % rdg. ±3 dgt.
AC Voltage range	6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz Basic accuracy 40 – 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
AUTO AC/DCV	Yes
Resistance range	N/A
DC Current range	N/A
From 4 to 20mA Percentage conversion display	N/A
AC Current range (use with Clamp on probes)	N/A
Temperature (thermocouples)	N/A
Voltage detection	Hi: AC40 V to 600 V, Lo: AC80 V to 600 V
Capacitance range	N/A
Frequency range	99.99 Hz to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage), Basic accuracy: ±0.1 % rdg. ±1 dgt.
Continuity check	N/A
Diode test	N/A
Other functions	Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)
Display	Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates	5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s)
Power supply	LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF)
Dimensions and mass	84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, 390 g (13.8 oz) (including batteries and holster)
Accessories	Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4

• *1:Your instrument can be used to measure voltages in excess of 1000 V DC if and only if both of the following conditions are satisfied:
• The circuit under measurement is isolated from the commercial power grid.
• The circuit under measurement is isolated from ground.
• g.: When measuring the no-load voltage of an ungrounded PV panel

Do not use the instrument with circuits whose terminal-to-ground voltage exceeds 1000V.
