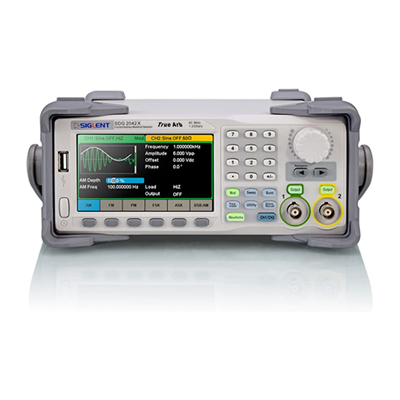

Siglent SDG2042X

Description

SIGLENT’s SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120 MHz maximum bandwidth, 1.2 GSa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Key Features:

• Dual-channel, 40MHz maximum bandwidth, 20Vpp maximum
• output amplitude, high fidelity output with 80dB dynamic range
• High-performance sampling system with 1.2GSa/s sampling rate
  and 16-bit vertical resolution. No detail in your waveforms will be
  lost
• Innovative TrueArb technology, based on a point-by-point
  architecture, supports any 8pts~8Mpts Arb waveform with a
  sampling rate in range of 1μSa/s~75MSa/s
• Innovative EasyPulse technology, capable of generating lower
  jitter Square or Pulse waveforms, brings a wide range and
  extremely high precision in pulse width and rise/fall times
  adjustment
• Plenty of analog and digital modulation types: AM、DSB-AM、
  FM、PM、FSK、ASK、PSK and PWM
• Sweep and Burst function
• Harmonic function
• 196 built-in arbitrary waveforms
• High precision Frequency Counter
• Standard interfaces: USB Host, USB Device（USBTMC）, LAN
  （VXI-11）
• Optional interface: GPIB
• 4.3” touch screen display for easier operation

High-performance Sampling System

Benefiting from a 1.2GSa/s and 16-bit sampling system, SDG2000X achieves extremely high accuracy performance in both time domain and amplitude, which results
in more accurately reconstructed waveforms and lower distortion.

Innovative EasyPulse Technology

When a Pulse waveform is generated by a common DDS generator, there will be a one-clock-jitter if the sampling rate is not an integer-related multiple of the output frequency. SDG1000X EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Pulse waveforms.

Innovative TrueArb Technology

For arbitrary waveforms, TrueArb not only has all the advantages of traditional DDS, but also eliminates the probability that DDS may cause serious jitter and distortion.
