Specifications

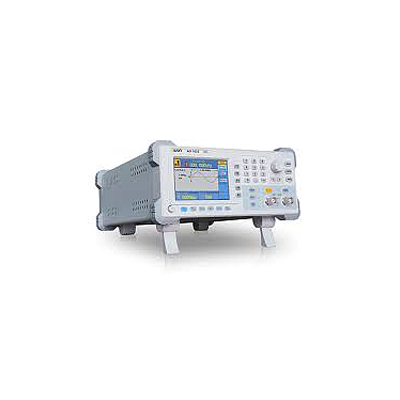

• Model    AG1022F
• Bandwidth     25MHZ
• Channel    Dual
• Sample Rate    125MSa/S
• Vertical Resolution    14bits
• Amplitude Flatness    20mVPP-20VPP
• Standard waveforms    Sine, Square, Pulse, Ramp, Noise
• Arbitrary waveforms    Sinc,Exponential Rise and Decay, DC, User defined
• Frequency Characteristics    125MSa/s,Resolution 1μHz
• Sine    1 μHz – 25MHz
• Square    1 μHz – 5MHz
• Pulse    1 μHz – 5MHz
• Ramp    1 μHz – 1MHz
• Arbitrary waveforms
• Wavelength    2 to 8Kpts
• Sample Rate    125MSa/s
• Vertical Resolution    14bits
• Non-Volatile Memory    4 waveforms
• Amplitude characteristics
• Amplitude    10mVPP-10VPP(50Ω), 20mVPP-20VPP(High Impedance)
• Resolution    1mVPP or 14bits
• DC Offset Range (AD+DC)    ±5V(50Ω)、±10V(High Impedance)
• DC Offset Range Resolution    1mV
• Load Impedance    50Ω(typical)
• Modulation
• Modulation waveform    AM/FM/PM/FSK/PWM,Linear/Logarithm Sweep and  Burst
• Modulation Frequency    2mHz to 20.00KHz (FSK 1μHz – 100KHz)
• Counter Specifications
• Function    Frequency, Period, Positive/Negtive Pulse Width, Duty Cycle
• Frequcy Range    1uHz to 200MHz
• Frequcy Resolution    6 digits/second
• Input / Output
• Display    3.9-inch(480×320) TFT LCD
• Type    external reference clock input/output
• Interface    USB Host,USB Device,RS232
• Mechanical
• Dimensions(W×H×D)    235×110×295(mm)
• Weight(without package)    3 KG
