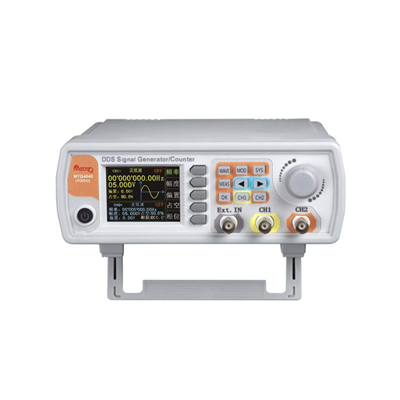

Metroq MTQ6060

Technical Specifications

• Type of Product: DDS Signal / Function Generator with Counter ( with USB)
• Sine Wave Frequency: 0-60MHz
• Square/Traingle, Wave: 0-15MHz
• Puls Wave Frequency, TTL Digital Wave Frequency, Arbitrary Wave Frequency: 0-6MHz
• Puls Width Adjustment: 30nS-4000S
• Square Wave Rise Time: <=15ns
• Min. Frequency Resolution: 0.01uHz
• Frequency Accuracy: +- 20ppm
• Frequency Stability: +-1ppm /3 hours
• Wave Form Length: 2048 points
• Wave Form Sampling Rate: 266 Msa/s
• Wave Form Vertical: 14 bits
• Square/Pulse Wave: Overshoot <= 5%
• Pulse Wave: Duty Cycle Adjustment 0.1% – 99.9%
• Amplitude Resolution: 1mV
• Output Impedance: 50Ohm +- 10%
• Offset Resolution: 0.01V
• Phase Resolution: 0.1*
• Level Rise/Fall Time: <= 20ns
• Display: 2.4 Inch TFT Colore LCD
• Arbitrary Wave: 1 to 60
• Power Supply: DC5V +- 0.5V
• Product Size: 194mm x 178 mm x 69mm
• Product Weight: 1.2kg
