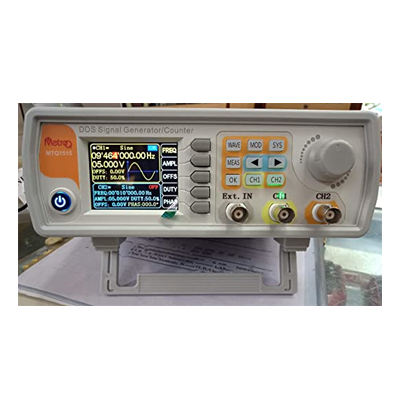

MetroQ 1515

Description

WAVEFORM TYPE : Sine Square Pulse (Adjustable duty Cycle, precise adjustment of pulse width and period), Triangular wave, Partial sine wave, CMOS wave, DC Level (set DC amplitude by adjusting offset), Half wave, Full wave, Positive staircase wave, Anti-Ladder wave, Noise wave, Exponential wave, Exponential drop, Multisonic wave, Simplistic pulse and Lorenz pulse and 60 Arbitrary wave forms. DISPLAY TYPE – 2.4inch TFT COLOR LCD Display. Arbitrary Wave – 1 to 60 total 60 groups (15 groups by default as power on) Store & Load – Position – 00 to 99 (00 memory location parameter is loaded by default as power on) INTERFACE MODE – USB; External Interface – with TTL level mode serial interface for user secondary development; Communication Speed – Adopt Standard 115200 bps; PROTOCOL – Using the command line, the protocol is made public. OPERATING Characteristics – All key operations, knob continuous adjustment..

Technical Specifications

• FREQUENCY-RANGE (SINE) 0 – 15MHz
• FREQUENCY-RANGE (SQUARE, TRIANGLE) 0 – 15MHz
• FREQUENCY-RANGE (PWM, CMOS, TTL, ARBITRARY) 0 – 6MHz
• MIN. FREQUENCY RESOLUTION: 0,01μHz
• FREQUENCY ACCUARACY +-20ppm
• FREQUENCY STABILITY:+-1ppm/3h
• DISPLAY MODE: TFT LCD Color display
• DISPLAY SIZE: 2,4“
• DIMENSIONS:194 x 178 x 69 mm
• WEIGHT 768 g
• Includes: Signal Generator, 2x BNC Signal Terminals, Power Supply
