Lutron AM-4215SD
Product Description

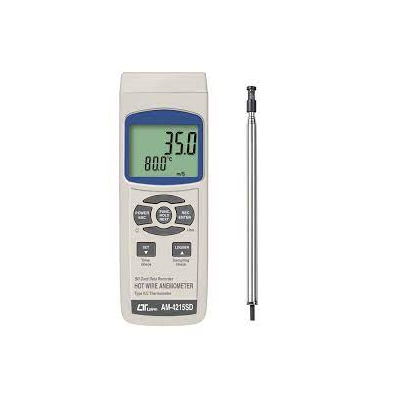

Lutron AM-4215SD Hot Wire Anemometer
Specification Lutron AM-4215SD Hot Wire Anemometer:
- Real time data logger, save the data into the SD memory card and can be downloaded to the Excel, extra
- Software is no need.
- SD card capacity: 1 GB to 16 GB.
- 2 to 25.0 m/s, high precision for low air velocity measurement.
- m/s, ft/min, km/h, knots, mile/h, ℃/℉.
- Air flow: CMM, CFM.
- Type K Thermometer : -100 to 1300 ℃,℃/℉
- Type J Thermometer : -100 to 1200 ℃,℃/℉
- Data hold, Record ( Max., Min. ).Air velocity
- Measurement Range Resolution Accuracy
- m/s 0.2 to 5.0 m/s 0.01 m/s ± ( 5% + a )
- 1 to 25.0 m/s 0.1 m/s reading
- Km/h 0.70 to 18.00 km/h 0.01 Km/h
- 0 to 72.0 km/h 0.1 Km/h or
- Mile/h 0.50 to 11.20 mph 0.01 mph ± ( 1% + a )
- ( MPH ) 11.2 to 44.7 mph 0.1 mph full scale
- Knot 0.40 to 9.70 knot 0.01 Knot
- 7 to 38.8 knot 0.1 Knot
- Ft/min 40-3940 ft/min 1 Ft/min
- @ a = 0.1 m/s, 0.3 km/h, 0.2 mile/h, 0.2 knot, 20 ft/min
- Note:
- m/s – meters per second km/h – kilometers per hour
- ft/min – feet per minute knot – nautical miles per hour
- mile/h – miles per hour **
- Air temperature
- Measuring Range 0 ℃ to 50 ℃/32 ℉ to 122 ℉
- Resolution 0.1 ℃/0.1 ℉
- Accuracy ± 0.8 ℃/1.5 ℉Air flow
- Measurement Range Resolution
- CMM ( m^3/min. ) 0 to 54,000 CMM 0.001 to 1 CMM
- CFM ( ft^3/min. ) 0 to 1,907,000 CFM 0.001 to 100 CFM
- Measurement Area
- CMM ( m^3/min. ) 0.001 to 30.000 m^2
- CFM ( ft^3/min. ) 0.01 to 322.93 ft^2
Accessories Included:
- Lutron AM-4215SD
- Instruction manual
- Hot wire telescope probe.
- Hard carrying case
Optional product:
- SD card
- Batere AA (UM3) = 6x
