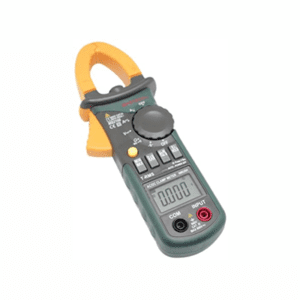

Mastech MS2108

MS2108 is a versatile and invaluable tool for electricians, technicians, professionals and alike. You can use it to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, continuity and even diode test. This true RMS clamp meter has inrush current measurement, which is designed to capture inrush current accurately and , most importantly synchronously and provide readings that accurately depict what the circuit protector experiences.

Technical Specifications

•  AC Voltage: 660mV/6.6V/66V/600V
• DC Voltage: 660mV/6.6V/600 V
• AC Current: 66A/600A
• DC Current: 66A/600A
• Inrush Current: 66A/600A
• Resistance: 660/6.6/66K/660k/6.6mF/66mF
• Capacitance Range 9nF-90µF
• Frequency (V): 600Hz/6.6kHz/10KHz
• Frequency (A): 600 Hz/1kHz
• Duty Cycle: 10%- 95%
• Relative Humidity < 80% RH
• Power 3 AAA Batteries 1.5 V

Description

• Display: LCD
• Maximum value display: 6200 digits.
• Over range indication: ‘0L’ or ‘-0L’
• Sampling time: approx. 0.4 second per sample
• Auto power off time: 30 min.
• Low Battery Indications
