Motwane DCM39A

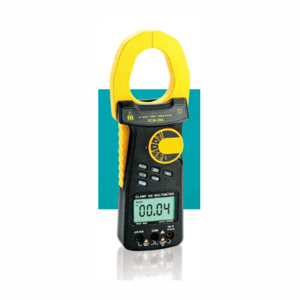

MOTWANE’s Digital Clamp Meter DCM 39A & DCM 9930A comprises high precision, industrial grade, RMS, auto-ranging clamp meters with 3¾ digits display. Both the clamp meters can be used as multimeters with test leads for AC/DC measurements of up to 400 mA, along with measuring AC/DC voltage, resistance, frequency, capacitance, duty cycle, diode, continuity, etc. These clamp meters are provided with multiple safety features like a water-resistant front panel and fireproof heavy-duty ABS casing. It uses the Hall Effect sensor for measuring the current. The model DCM 39A measures AC/DC currents up to 1000A. The model DCM 9930A measures AC/DC currents up to 2000A.





Application

• Generation, Transmission & Distribution
• Substation Process industries
• OEMs
• Railways
• Telecom Industries
• Service Industries

Features

• Auto-ranging 3¾ digits (3999) LCD-display
• True RMS reading for ACV & ACA
• 2 in 1 clamp meter + Digital Multi meter
• Overload protection for all ranges
• Data hold feature with relative key facility
• Water resistance front panel, fireproof heavy-duty ABS casing
• Current sensor- Hall Effect Sensor
• Over range indication: ‘OL’ is displayed
• Max conductor size is 60mm approx
• Power – one 9V battery type (6F22)



Technical Specification



General

Display: 3 ¾ Digits LCD display.

Dimension(H X W X L)  : 255 X 73 X 38 mm (approx.)

Net weight: 515 gm with battery (approx.)

Power

Power Supply: 9V Battery Type 6F22



Standard Accessories

Pair of Test Leads, User Manual, One 9V Battery installed

AC/DC Current (True RMS for AC)- DCM39A

Range	Resolution	Input	Accuracy
400 µA	0.1 µA	Direct Input (by using leads)	± 1.2% ± 5dgt
4000 µA	1 µA		± 1.2% ± 5dgt
40 mA	0.01 mA		± 1.2% ± 5dgt
400 mA	1 mA		± 1.2% ± 5dgt
400 A	0.1 A	Indirect Input (by using clamp)	± 2% ± 8dgt
1000 A	1 A		± 2% ± 8dgt

Overload protection: AC/DC 500mA(Fuse)

AC/DC 1000A/1000V

Frequency Response: 45Hz – 1KHz

AC/DC Current (True RMS for AC)- DCM9930A

Range	Resolution	Input	Accuracy
400 µA	0.1 µA	Direct Input (by using leads)	± 1.2% ± 5dgt
4000 µA	1 µA		± 1.2% ± 5dgt
40 mA	0.01 mA		± 1.2% ± 5dgt
400 mA	1 mA		± 1.2% ± 5dgt
400 A	0.1 A	Indirect Input (by using clamp)	± 2% ± 8dgt
2000 A	1 A		± 2% ± 8dgt

Overload protection: AC/DC 500mA(Fuse)

AC/DC 2000A/1000V

Frequency Response : 45Hz – 1KHz

Common Technical Specification for DCM39A and DCM9930A

DC VOLTAGE

Range	Resolution	Accuracy	Overload protection
400mV	0.1 mV	± 0.5% ± 2dgt	1000V DC OR 1000V AC RMS (Sine wave)
4V	0.001 V	± 1% ± 2dgt
40V	0.01 V	± 1% ± 2dgt
400V	0.1 V	± 1% ± 2dgt
1000V	1 V	± 1% ± 2dgt

Input Impedance: ≥10MΩ (Approx)

AC VOLTAGE

Range	Resolution	Accuracy	Overload protection
4V	0.001 V	± 1.2% ± 5dgt	1000V DC OR 1000V AC rms (Sine wave)
40V	0.01 V	± 1.2% ± 5dgt
400V	0.1 V	± 1.2% ± 5dgt
1000V	1 V	± 1.2% ± 5dgt

Input Impedance: 10MΩ (Approx)

Frequency Response: 45Hz – 1KHz

RESISTANCE RANGE

Range	Resolution	Accuracy	Overload protection
400 Ω	0.1 Ω	± 1% ± 5dgt	400V DC/AC RMS (Sine wave)
4 KΩ	1 Ω	± 1% ± 5dgt
40 KΩ	10 Ω	± 1% ± 5dgt
400 KΩ	100 Ω	± 1% ± 5dgt
4 MΩ	1 KΩ	± 2% ± 2dgt
40 MΩ	10 KΩ	± 3.5% ± 5dgt

CAPACITANCE RANGE

Range	Resolution	Accuracy	Overload protection
50 nF	10 pF	± 3% ± 5dgt	400V DC/AC RMS (Sine wave)
500 nF	100 pF	± 3% ± 5dgt
5 µF	0.001 µF	± 3% ± 5dgt
50 µF	0.01 µF	± 3% ± 5dgt

FREQUENCY RANGES

Range	Resolution	Accuracy	Overload protection
50Hz	0.01Hz	± 1% ± 5dgt	1000V AC/DC
500Hz	0.1Hz	± 1% ± 5dgt
5KHz	1Hz	± 1% ± 5dgt
50KHz	0.01 kHz	± 1% ± 5dgt
100KHz	0.1 kHz	± 1% ± 5dgt

DUTY CYCLE

Range	Resolution	Accuracy	Overload Protection
0.1%-99%	0.1%	± 1% ± 5dgt	1000 V AC/DC
